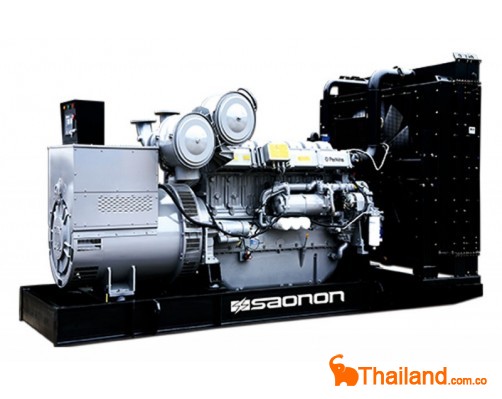

Perkins Genset

Powered by Perkins



Product description:



Reliable and efficient generating set equipped with world-famous Perkins engine, Stamfordalternator and the world advanced control panel.







Product features:



High stability, strict emission standards, low fuel consumption and low noise;



High electrical efficiency, long overhauls period, compact structure and long service life.







Power range:



10kVA-2500kVA（50Hz、60Hz）











Application scope:



It is widely used as the prime or standby power in post and telecommunications, communication, hotels, buildings, entertainment places, hospitals, shopping malls, industrial and mining industries, etc.



Saonon Diesel Gensets Powered by Perkins
50Hz 3Ph 400V Pf0.8
Genset Model	Power Rating ESP		Power Rating PRP		Engine Model	Alternator Model	Cylinders	Displacement (L)	Fuel Consumption of Full Load (L/H)	Lube Capacity (L)	Dimension L×W×H（mm)	Weight (kg)
Open Type	kVA	kW	kVA	kW
S10JSP	10	8	9	7	403A-11G1	LSAP40C	3L	1.1	2.6	5	1500×650×1225	425
S10JSP	10	8	9	7	403D-11G	LSAP40C	3L	1.1	2.6	5	1500×650×1225	425
S14JSP	14	11	13	10	403D-15G	LSAP40D	3L	1.5	3.67	6	1500×650×1225	496
S14JSP	14	11	13	10	403A-15G1	LSAP40D	3L	1.5	3.48	6	1500×650×1225	496
S22JSP	22	18	20	16	404D-22G	LSAP40G	4L	2.2	5.3	11	1500×650×1225	610
S22JSP	22	18	20	16	404A-22G1	LSAP40G	4L	2.2	5.3	11	1500×650×1225	610
S28JSP	28	22	25	20	404D-22TG	LSAP42C	4L	2.2	6.7	11	1500×650×1225	660
S33EP	33	26	30	24	1103A-33G	LSAP42D	3L	3.3	7.0	8	1650×750×1280	780
S50EP	50	40	45	36	1103A-33TG1	LSAP43D	3L	3.3	10.6	8	1650×750×1280	887
S65EP	65	52	58	48	1103A-33TG2	LSAP43E	3L	3.3	13.8	8	1650×750×1280	908
S73JSP	73	58	65	52	1104A-44TG1	LSAP43F	4L	4.4	14.8	8	1750×850×1300	923
S88JSP	88	70	80	64	1104A-44TG2	LSAP43F	4L	4.4	18.4	8	1750×850×1300	1037
S100JSP	100	80	92	73	1104C-44TAG2	LSAP44C	4L	4.4	20.5	8	2240×850×1320	1175
S110JSP	110	88	100	80	1104C-44TAG2	LSAP44D	4L	4.4	24.0	8	2240×850×1320	1190
S150EP	150	120	137	110	1006TAG	LSAP44F	6L	6.0	29.0	19	2240×850×1320	1363
S165JSP	165	132	150	120	1106A-70TAG2	LSAP44G	6L	7.0	33.2	17	2900×900×1536	1760
S165EP	165	132	150	120	1006TAG2	LSAP44G	6L	6.0	41.0	19	2400×850×1500	1420
S200JSP	200	160	180	144	1106A-70TAG3	LSA46.2M3	6L	7.0	41.6	17	2900×900×1536	1796
S200EP	200	160	180	144	1106C-E66TAG4	LSA46.2M3	6L	6.6	40.0	17	2900×900×1536	1796
S220JSP	220	176	200	160	1106A-70TAG4	LSA46.2M5	6L	7.0	45.8	17	2900×900×1536	1830
S220EP	220	176	200	160	1306C-E87TAG3	LSA46.2M5	6L	8.7	43.5	27	2600×1130×2000	1910
S250EP	250	200	225	180	1306C-E87TAG4	LSA46.2L6	6L	8.7	47.6	27	2600×1130×2000	2027
S275EP	275	220	250	200	1306C-E87TAG6	LSA46.2L6	6L	8.7	45.0	27	2600×1130×2000	2042
S300EP	300	240	275	220	1606A-E93TAG4	LSA46.2L9	6L	9.3	55.5	36	4100×1483×2000	2560
S330EP	330	264	300	240	1606A-E93TAG5	LSA46.2VL12	6L	9.3	59.6	36	4100×1483×2000	2600
S400EP	400	320	350	280	2206C-E13TAG2	LSA47.2VS2	6L	13.0	70.0	40	3200×1206×1980	2932
S450EP	450	360	400	320	2206C-E13TAG3	LSA47.2S4	6L	13.0	82.7	40	3200×1206×1980	3069
S500EP	500	400	455	360	2506C-E15TAG1	LSA47.2S5	6L	15.0	95.6	62	3500×1540×1850	3400
S550EP	550	440	500	400	2506C-E15TAG2	LSA47.2M7	6L	15.0	1.6	62	3500×1540×1850	3551
S660EP	660	528	600	480	2806C-E18TAG1A	LSA47.2L9	6L	18.0	126.6	62	3500×1540×2050	3813
S700EP	700	560	650	525	2806C-E18TAG2	LSA49.1S4	6L	18.0	129.3	62	3500×1540×2050	3925
S800EP	800	660	725	580	4006-23TAG2A	LSA49.1M6	6L	23.0	152.3	113	4350×1750×2270	5525
S880EP	880	704	800	640	4006-23TAG3A	LSA49.1M75	6L	23.0	171.8	113	4350×1750×2270	5570
S960EP	960	770	880	704	4008TAG1A	LSA49.1L9	8L	30.6	188.0	153	4700×2070×2414	6667
S1100EP	1100	880	1000	800	4008TAG2A	LSA49.1L11	8L	30.6	215.2	153	4700×2070×2414	6792
S1375EP	1375	1100	1250	1000	4012-46TWG2A	LSA50.2M6	12V	46.0	258.1	177	4800×2200×2477	9950
S1500EP	1500	1200	1350	1080	4012-46TWG3A	LSA50.2L7	12V	46.0	279.1	177	4900×2200×2477	10205
S1650EP	1650	1320	1500	1200	4012-46TAG2A	LSA50.2L8	12V	46.0	299.0	177	4900×2200×2477	10435
S1875EP	1875	1500	1710	1368	4012-46TAG3A	LSA51.2S55	12V	46.0	367.3	177	5100×2200×2477	11200
S2000EP	2000	1600	1825	1460	4016TAG1A	LSA51.2S55	16V	61.0	381.3	237	6100×2740×3120	13780
S2250EP	2250	1800	2050	1640	4016TAG2A	LSA51.2M60	16V	61.0	434.0	237	6100×2740×3120	13875
S2250EP	2250	1800	2000	1600	4016-61TRG2	LSA51.2M60	16V	61.0	422.0	237	6100×2740×3120	13875
S2500EP	2500	2000	2250	1800	4016-61TRG3	LSA51.2VL90	16V	61.0	467.6	237	6100×2740×3120	14900
60Hz 3Ph 480V Pf0.8
Genset Model	Power Rating ESP		Power Rating PRP		Engine Model	Alternator Model	Cylinders	Displacement (L)	Fuel Consumption of Full Load (L/H)	Lube Capacity (L)	Dimension L×W×H（mm)	Weight (kg)
Open Type	kVA	kW	kVA	kW
S12JSP6	12	10	11	9	403D-11G	LSA40VS1	3L	1.1	2.8	5	1500×650×1225	436
S17JSP6	17	13	15	12	403D-15G	LSA40VS2	3L	1.5	4.3	6	1500×650×1225	500
S26JSP6	26.5	21	24	19	404D-22G	LSA40M5	4L	2.2	6.2	11	1500×650×1225	610
S35JSP6	35	28	31	25	404D-22TG	LSA42.3VS1	4L	2.2	8.3	11	1500×650×1225	644
S37EP6	37	30	34	27	404D-22TAG	LSA42.3VS2	4L	2.2	8.7	11	1500×650×1225	665
S60EP6	60	47	53	42	1103A-33TG1	LSA42.3M7	3L	3.3	12.4	8	1650×750×1280	890
S68EP6	68	55	62.5	50	1104D-44TG1	LSA42.3M8	4L	4.4	16.3	8	2240×850×1320	925
S75EP6	75	60	68	54	1103A-33TG2	LSA42.3L9	3L	3.3	16.6	8	1650×750×1280	910
S80EP6	80	64	73	58	1104D-E44TG1	LSA42.3L9	4L	4.4	18.7	8	2240×850×1320	940
S85EP6	85	68	77	62	1104A-44TG1	LSA42.3L9	4L	4.4	17.8	8	1750×850×1300	789
S100JSP6	100	80	90	72	1104A-44TG2	LSA43.2L8	4L	4.4	22.9	8	1750×850×1300	805
S100EP6	100	80	90	72	1104D-E44TAG1	LSA43.2L8	4L	4.4	23.7	8	2240×850×1320	1014
S120EP6	120	96	109	87	1006TG1A	LSA44.2VS3	6L	6.0	25.8	16	2240×850×1320	1263
S125JSP6	125	100	112	90	1104C-44TAG2	LSA44.2VS3	4L	4.4	26.9	8	2240×850×1320	1175
S125EP6	125	100	112	90	1104D-E44TAG2	LSA44.2VS3	4L	4.4	27.8	8	2240×850×1320	1254
S132EP6	132	106	120	96	1006TG2A	LSA44.2VS45	6L	6.0	25.5	16	2240×850×1320	1310
S166EP6	166	133	151	121	1006TAG	LSA44.2S7	6L	6.0	36.0	19	2240×850×1320	1363
S175EP6	175	140	159	127	1106D-E66TAG2	LSA44.2S75	6L	6.6	37.6	17	2900×900×1536	1710
S186EP6	186	149	168	134	1106D-E66TAG3	LSA44.2S75	6L	6.6	40.0	17	2900×900×1536	1725
S186EP6	186	149	168	134	1106C-E66TAG3	LSA44.2S75	6L	6.6	38.9	17	2900×900×1536	1725
S220EP6	220	176	200	160	1106D-E66TAG4	LSA44.2 L12	6L	6.6	46.2	17	2900×900×1536	1840
S220EP6	220	176	200	160	1106C-E66TAG4	LSA44.2 L12	6L	6.6	39.7	17	2900×900×1536	1840
S250EP6	250	200	228	182	1306C-E87TAG3	LSA46.2M3	6L	8.7	49.3	27	2600×1130×2000	1860
S270EP6	270	216	245	196	1306C-E87TAG4	LSA46.2M5	6L	8.7	52.6	27	2600×1130×2000	1910
S350EP6	350	280	318	255	1606A-E93TAG4	LSA46.2L9	6L	9.3	67.8	36	4100×1483×2000	2525
S440EP6	440	352	400	320	2206A-E13TAG5	LSA47.2VS2	6L	12.5	90.3	40	3200×1206×1980	2955
S440EP6	440	352	400	320	2206D-E13TAG2	LSA47.2VS2	6L	12.5	90.3	40	3200×1206×1980	2955
S500EP6	500	400	456	365	2206D-E13TAG3	LSA47.2VS2	6L	12.5	94.0	40	3200×1206×1980	2985
S550EP6	550	440	500	400	2506D-E15TAG1	LSA47.2S4	6L	15.2	97.8	62	3500×1540×1850	3375
S575EP6	575	460	512	410	2506A-E15TAG3	LSA47.2S4	6L	15.2	97.0	62	3500×1540×1850	3410
S640EP6	641	513	585	468	2506A-E15TAG4	LSA47.2M7	6L	15.2	113.0	62	3500×1540×1850	3550
S688EP6	688	550	625	500	2806A-E18TAG1A	LSA47.2M7	6L	18.1	121.6	62	3500×1540×2050	3680
S750EP6	750	600	690	552	2806A-E18TAG3	LSA47.2M8	6L	18.1	139.7	62	3500×1540×2050	3769
S825EP6	825	660	750	600	4006-23TAG2A	LSA47.2L9	6L	23.0	173.4	113	4350×1750×2270	5300
S940EP6	941	753	846	677	4006-23TAG3A	LSA49.1M6	6L	23.0	196.6	113	4350×1750×2270	5600
S980EP6	980	784	892	714	4008TAG1	LSA49.1M75	8L	30.6	210.5	166	4700×2070×2414	6460
S1100EEP6	1100	880	1000	800	4008TAG2	LSA49.1L9	8L	30.6	213.0	166	4700×2070×2414	6700
S1375EP6	1375	1100	1250	1000	4012-46TWG2A	LSA50.2S4	12V	46.0	261.8	177	4700×2200×2477	9750
S1500EP6	1500	1200	1368	1094	4012-46TWG3A	LSA50.2M6	12V	46.0	287.7	177	4800×2200×2477	10030
S1655EP6	1655	1324	1506	1205	4012-46TAG2A	LSA50.2M6	12V	46.0	313.9	177	4800×2200×2477	10100
S1880EP6	1880	1505	1713	1370	4012-46TAG3A	LSA50.2L8	12V	46.0	356.0	177	4900×2200×2477	10500

Notice:

We reserves the right to make changes in model,technical specification,color,configuration and accessories without prior notice.Please contact your sales team

before ordering.
