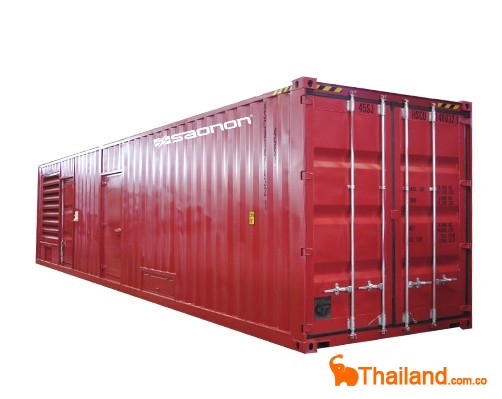

Cummins Containerized Genset
Containerized Gensets
20 and 40 feet container can be adopted based on power range.
Side doors are mounted on both sides of container, convenient for daily check and maintenance.
Cat ladder can be equipped above 500kW containerized generating sets, making it easier for lifti
Containerized Gensets
Product description:
Reliable and efficient generating set equipped with world-famous Cummins engine, Stamford alternator and the world advanced control panel.
Product features:
20 and 40 feet container can be adopted based on power range.
Side doors are mounted on both sides of container, convenient for daily check and maintenance.
Cat ladder can be equipped above 500kW containerized generating sets, making it easier for lifting and point inspection.
External oil filter design can ensure the fuel safety when generating sets outside.
Cabinet and base frame are made of high quality slabs and coated with excellent coating material, with three layers of bottom-medium-top spraying process and high anti corrosion and antirust capacity.
Power range:
Above 625kVA (50Hz、60Hz)
Application scope:
It is applied in various construction sites, such as huge buildings, airports, harbors, offshore operation platforms and field projects, etc.
Saonon Diesel Gensets Powered by Cummins | ||||||||||||
50Hz 3Ph 400V Pf0.8 | ||||||||||||
Genset Model | Power Rating ESP |
Power Rating PRP |
Engine Model | Alternator Model | Cylinders | Displacement (L) |
Fuel Consumption of Full Load (L/H) |
Lube Capacity (L) |
Dimension L×W×H(mm) |
Weight (kg) |
||
Silent Canopy | kVA | kW | kVA | kW | ||||||||
S800CCS | 800 | 640 | 728 | 582 | KT38-GA | LVI634B | 12V | 37.8 | 225 | 135 | 6058×2438×2896 | 11985 |
S825CCS | 825 | 660 | 750 | 600 | KTA38-G2 | LVI634B | 12V | 37.8 | 204 | 135 | 6058×2438×2896 | 12200 |
S880CCS | 880 | 704 | 800 | 640 | KTA38-G2B | HCI634H | 12V | 37.8 | 207 | 135 | 6058×2438×2896 | 12350 |
S1000CCS | 1000 | 800 | 910 | 728 | KTA38-G2A | HCI634H | 12V | 37.8 | 211 | 135 | 6058×2438×2896 | 12450 |
S1100CCS | 1100 | 880 | 1000 | 800 | KTA38-G5 | HCI634J | 12V | 37.8 | 220 | 135 | 6058×2438×2896 | 12510 |
S1250CCS | 1250 | 1000 | 1138 | 910 | KTA38-G9 | LVI634G | 12V | 37.8 | 230 | 135 | 6058×2438×2896 | 13417 |
S1375CCS | 1375 | 1100 | 1250 | 1000 | QSK38-G5 | HCI634K | 12V | 37.8 | 274 | 170 | 12192×2438×2896 | 15800 |
S1375CCS | 1375 | 1100 | 1250 | 1000 | KTA50-G3 | LVI 634G | 16V | 50 | 254 | 177 | 12192×2438×2896 | 16850 |
S1540CCS | 1540 | 1232 | 1400 | 1120 | KTA50-G8 | PI734B | 16V | 50 | 289 | 204 | 12192×2438×2896 | 18322 |
S1650CCS | 1650 | 1320 | 1500 | 1200 | KTA50-GS8 | PI734C | 16V | 50 | 309 | 204 | 12192×2438×2896 | 18500 |
60Hz 3Ph 480V Pf0.8 | ||||||||||||
S850CC6S | 850 | 680 | 775 | 620 | KT38-G | HCI544F | 12V | 37.8 | 147.4 | 135 | 6058×2438×2896 | 11667 |
S1000CC6S | 1000 | 800 | 906 | 725 | KTA38-G2 | HCI634G | 12V | 37.8 | 195 | 135 | 6058×2438×2896 | 11947 |
S1100CC6S | 1100 | 880 | 1000 | 800 | KTA38-G2A | LVI634C | 12V | 37.8 | 210 | 135 | 6058×2438×2896 | 12834 |
S1250CC6S | 1250 | 1000 | 1125 | 900 | KTA38-G4 | HCI634H | 12V | 37.8 | 229.5 | 135 | 6058×2438×2896 | 13170 |
S1540CC6S | 1540 | 1232 | 1400 | 1120 | KTA50-G3 | HCI634K | 16V | 50 | 281.5 | 177 | 12192×2438×2896 | 17020 |
S1720CC6S | 1732 | 1386 | 1575 | 1260 | KTA50-G9 | PI734B | 16V | 50 | 313.2 | 204 | 12192×2438×2896 | 18200 |
Saonon Diesel Gensets Powered by Perkins | ||||||||||||
50Hz 3Ph 400V Pf0.8 | ||||||||||||
Genset Model | Power Rating ESP |
Power Rating PRP |
Engine Model | Alternator Model | Cylinders | Displacement (L) |
Fuel Consumption of Full Load (L/H) |
Lube Capacity (L) |
Dimension L×W×H(mm) |
Weight (kg) |
||
Silent Canopy | kVA | kW | kVA | kW | ||||||||
S800EPS | 800 | 660 | 725 | 580 | 4006-23TAG2A | LSA49.1M6 | 6L | 23.0 | 152.3 | 113 | 6058×2438×2591 | 10370 |
S880EPS | 880 | 704 | 800 | 640 | 4006-23TAG3A | LSA49.1M75 | 6L | 23.0 | 171.8 | 113 | 6058×2438×2591 | 10400 |
S960EPS | 960 | 770 | 880 | 704 | 4008TAG1A | LSA49.1L9 | 8L | 30.6 | 188.0 | 153 | 6058×2438×2591 | 11667 |
S1100EPS | 1100 | 880 | 1000 | 800 | 4008TAG2A | LSA49.1L11 | 8L | 30.6 | 215.2 | 153 | 6058×2438×2591 | 12030 |
S1375EPS | 1375 | 1100 | 1250 | 1000 | 4012-46TWG2A | LSA50.2M6 | 12V | 46.0 | 258.1 | 177 | 12192×2438×2896 | 17950 |
S1500EPS | 1500 | 1200 | 1350 | 1080 | 4012-46TWG3A | LSA50.2L7 | 12V | 46.0 | 279.1 | 177 | 12192×2438×2896 | 18205 |
S1650EPS | 1650 | 1320 | 1500 | 1200 | 4012-46TAG2A | LSA50.2L8 | 12V | 46.0 | 299.0 | 177 | 12192×2438×2896 | 18435 |
S1875EPS | 1875 | 1500 | 1710 | 1368 | 4012-46TAG3A | LSA51.2S55 | 12V | 46.0 | 367.3 | 177 | 12192×2438×2896 | 19200 |
S2000EPS | 2000 | 1600 | 1825 | 1460 | 4016TAG1A | LSA51.2S55 | 16V | 61.0 | 381.3 | 237 | 12192×2438×2896 | 21780 |
S2250EPS | 2250 | 1800 | 2050 | 1640 | 4016TAG2A | LSA51.2M60 | 16V | 61.0 | 434.0 | 237 | 12192×2438×2896 | 21875 |
S2250EPS | 2250 | 1800 | 2000 | 1600 | 4016-61TRG2 | LSA51.2M60 | 16V | 61.0 | 422.0 | 237 | 12192×2438×2896 | 21875 |
S2500EPS | 2500 | 2000 | 2250 | 1800 | 4016-61TRG3 | LSA51.2VL90 | 16V | 61.0 | 467.6 | 237 | 12192×2438×2896 | 22900 |
60Hz 3Ph 480V Pf0.8 | ||||||||||||
S825EP6S | 825 | 660 | 750 | 600 | 4006-23TAG2A | LSA47.2L9 | 6L | 23.0 | 173.4 | 113 | 6058×2438×2591 | 10172 |
S940EP6S | 941 | 753 | 846 | 677 | 4006-23TAG3A | LSA49.1M6 | 6L | 23.0 | 196.6 | 113 | 6058×2438×2591 | 10420 |
S980EP6S | 980 | 784 | 892 | 714 | 4008TAG1 | LSA49.1M75 | 8L | 30.6 | 210.5 | 166 | 6058×2438×2591 | 11517 |
S1100EEP6S | 1100 | 880 | 1000 | 800 | 4008TAG2 | LSA49.1L9 | 8L | 30.6 | 213.0 | 166 | 6058×2438×2591 | 11717 |
S1375EP6S | 1375 | 1100 | 1250 | 1000 | 4012-46TWG2A | LSA50.2S4 | 12V | 46.0 | 261.8 | 177 | 12192×2438×2896 | 17800 |
S1500EP6S | 1500 | 1200 | 1368 | 1094 | 4012-46TWG3A | LSA50.2M6 | 12V | 46.0 | 287.7 | 177 | 12192×2438×2896 | 18000 |
S1655EP6S | 1655 | 1324 | 1506 | 1205 | 4012-46TAG2A | LSA50.2M6 | 12V | 46.0 | 313.9 | 177 | 12192×2438×2896 | 18100 |
S1880EP6S | 1880 | 1505 | 1713 | 1370 | 4012-46TAG3A | LSA50.2L8 | 12V | 46.0 | 356.0 | 177 | 12192×2438×2896 | 18485 |
